Erick Murphy
SFR Solder Feeder
Offers with several solder wire Guide Kits which range from 0.5 to 1.5mm. Additionally, it features a solder wire detector sensor and in case of any "blocked up" or "Empty" solder feeds. Lakeside is impressed with this feature. Jams or empty condition stops the feeder immediately. All solder feeds are measured by an encoder at high accuracy. Manually loading a new solder roll was simple. A solder feed pushbutton is located right next to the solder feeder.
Danielle Kinney
Unchallenging Cell Operation
Lakeside Automation designs and builds without losing site of the end user. JBC robot cells are designed to minimize the pain of operation and maintenance.
Many solder robot manufacturers have comparable hardware however, most of them leave the customer frustrated with complicated systems that have inconsistent recovery.
Lakeside Automation carefully selected two robots for JBC Integration. These robots were based on performance, ease of programming and price.
Both robots have absolute encoders that eliminate the need to remove circuit boards in the event of a light curtain blockage, or even E-stop condition.
Both robots can be programed by hand manipulation.
Uncomplicated Programming
One of the biggest frustrations with Selective Soldering Robots is programming points. There are far too many teach pendants that are poorly laid out and quirky.
I personally have experience with this frustration, and I have full heartedly avoided this with our design. There is no reason to settle with this discontent.
Programming is simple using the IAI PC software. The environment has an intuitive Excel format that is easy to use.
erick@lsautosys.com
Unmatchable Price
Simply put, no other selective solder company can match our price. Our prices are 30 to 50% lower than the competitor.
A complete 4 axis IXP Robot cell is at 70K. A six axis Universal Robot cell is only 94K! Our fair prices will significantly increase your ROI.

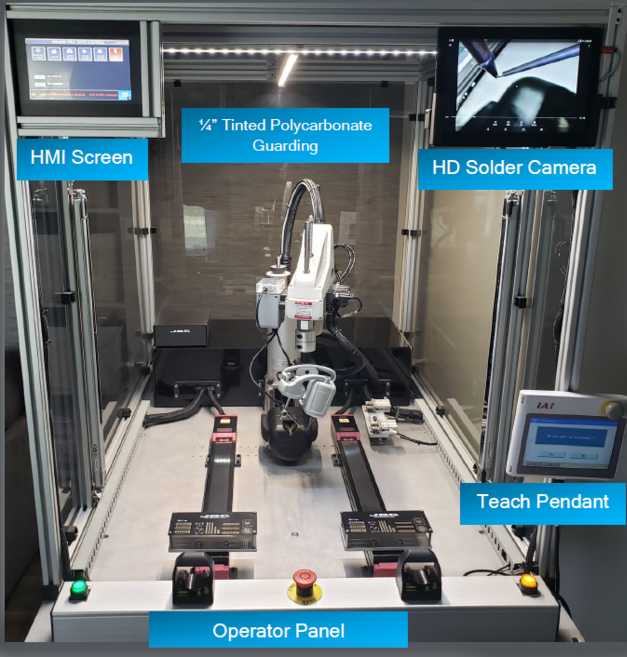

Solder Robot Cell Features
Dual safety channel guard doors on both sides.
Start cycle buttons are zero-force to reduce repetitive stress.
Safety light curtains are provided to keep operator safe from hazardous motions.
Solder camera tablet is wireless and may be removed from tray.
Dual servo shuttles to present PCB to robot.
Available Options:
Fume extractor
PCB barcode reader
Robot guided vision system
3D solder vision inspection
Custom PCB fixtures
danielle@lsautosys.com
There are many selective solder companies to choose from that have similar features and hardware. However, with the JBC robot cell I found the operation and programming far less stressful. I’ve been in Controls for over 20 years and have worked with many operators and maintenance workers.
I have heard their pain operating and maintaining systems that had comparable hardware but, lost focus with the end user needs. Lakeside and JBC has eliminated this frustration for you.
Call or write with any questions!
Erick Murphy
Erick Murphy
Lakeside Automation, LLC Member
Cell: 269-449-6110
Email: erick@LsAutoSys.com
CSR Cartridge Stand
Its mechanism works with compressed air to fix and release the cartridges automatically. In order to facilitate the automatic cartridge fixation and release, the position of the stand can be adjusted by pivoting up to 35° in both directions and can therefore be optimally adapted to the working position.
Selective Solder Integrators
Universal Robot has Patented technology lets operators with no programming experience quickly set up and operate the cobot with intuitive, 3D visualization. Simply move the robot arm by hand to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.
LAKESIDE AUTOMATION, LLC
CLR Tip Cleaner For Robot
Features a large capacity tank with easy extraction and a large opening for easy tip access. In order to facilitate automatic cartridge cleaning, the position of the stand can be adjusted by pivoting up to 35° in both directions and can therefore be optimally adapted to the working position.
Even small and mid-sized electronics manufacturers can afford collaborative robots to drive productivity. Meet competitive demands for faster output and lower costs, and see ROI typically in less than a year
Get Pricing Details
JBC Solder Robot Kit Features:
TRA Soldering Iron
Features a solder cartridge gripper. This allows for automatic cartridge exchange. This is very convenient if you have different solder point geometries that require a different solder tip. Also used for exchange of worn solder cartridges.
